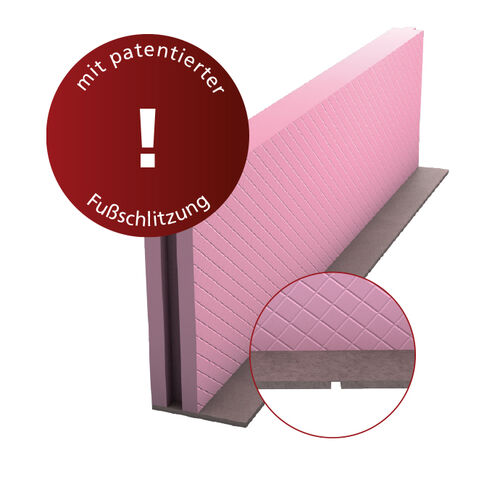

DECKENRANDSCHALUNG THERMO
[ MIT GESCHLITZTEN FASERZEMENTFÜSSEN FÜR EINE HÖHERE ANPASSUNGSFÄHIGKEIT DER SCHALUNG ]
| Schenkel | XPS 35 – 160 mm / seitl. Nut + Feder |
|---|---|
| Fuß | Faserzement 4 mm |
| Elementhöhe | 160 – 300 mm |
| Elementlänge | VE 1 = 1000 mm / VE 2 = 2000 mm |
Optionen
- Firmenaufdruck bis 120 mm Dämmstoffstärke
- XPS mit WLG 027 auf Anfrage
- Weitere Abmessungen auf Anfrage
* Ab min. 140 mm Dämmstärke – je nach Mauerwerksbreite und Lambdawert
| TYP | 1000 MM | ART.-NR. | 2000 MM | ART.-NR. |
|---|---|---|---|---|
| [ H / cm ] | [ m / Palette ] | [1000 mm ] | [ m / Palette ] | [2000 mm ] |
| XPS 35 | ||||
| 16 | 336 | 30092M | 400 | 30092 |
| 18 | 336 | 30093M | 400 | 30093 |
| 20 | 280 | 30094M | 352 | 30094 |
| 22 | 280 | 30095M | 344 | 30095 |
| 25 | 224 | 30097M | 288 | 30097 |
| 30 | 192 | 30098M | 232 | 30098 |
| XPS 50 | ||||
| 16 | 240 | 30082M | 260 | 30082 |
| 18 | 240 | 30083M | 272 | 30083 |
| 20 | 200 | 30084M | 248 | 30084 |
| 22 | 200 | 30085M | 248 | 30085 |
| 25 | 160 | 30087M | 180 | 30087 |
| 30 | 160 | 30088M | 152 | 30088 |
| XPS 60 | ||||
| 16 | 180 | 30060M | 240 | 30060 |
| 18 | 180 | 30061M | 240 | 30061 |
| 20 | 170 | 30062M | 200 | 30062 |
| 22 | 170 | 30063M | 212 | 30063 |
| 25 | 136 | 30064M | 180 | 30064 |
| 30 | 104 | 30065M | 132 | 30065 |
| XPS 80 | ||||
| 16 | 144 | 16/80M | 176 | 16/80 |
| 18 | 144 | 18/80M | 176 | 18/80 |
| 20 | 120 | 20/80M | 164 | 20/80 |
| 22 | 120 | 22/80M | 146 | 22/80 |
| 25 | 96 | 25/80M | 132 | 25/80 |
| 30 | 72 | 30/80M | 96 | 30/80 |
| TYP | 1000 MM | ART.-NR. | 2000 MM | ART.-NR. |
|---|---|---|---|---|
| [ H / cm ] | [ m / Palette ] | [ 1000 mm ] | [ m / Palette ] | [ 2000 mm ] |
| XPS 100 | ||||
| 16 | 120 | 16/100M | 144 | 16/100 |
| 18 | 120 | 18/100M | 144 | 18/100 |
| 20 | 100 | 20/100M | 120 | 20/100 |
| 22 | 100 | 22/100M | 120 | 22/100 |
| 25 | 80 | 25/100M | 102 | 25/100 |
| 30 | 60 | 30/100M | 64 | 30/100 |
| XPS 120 | ||||
| 16 | 102 | 16/120M | 112 | 16/120 |
| 18 | 102 | 18/120M | 112 | 18/120 |
| 20 | 84 | 20/120M | 104 | 20/120 |
| 22 | 84 | 22/120M | 104 | 22/120 |
| 25 | 68 | 25/120M | 84 | 25/120 |
| 30 | 50 | 30/120M | 56 | 30/120 |
| XPS 140 | ||||
| 16 | 104 | 16/140 | ||
| 18 | 104 | 18/140 | ||
| 20 | 78 | 20/140 | ||
| 22 | 78 | 22/140 | ||
| 25 | 78 | 25/140 | ||
| 30 | 62 | 30/140 | ||
| XPS 160 | ||||
| 16 | 104 | 16/160 | ||
| 18 | 104 | 18/160 | ||
| 20 | 78 | 20/160 | ||
| 22 | 78 | 22/160 | ||
| 25 | 78 | 25/160 | ||
| 30 | 62 | 30/160 | ||
