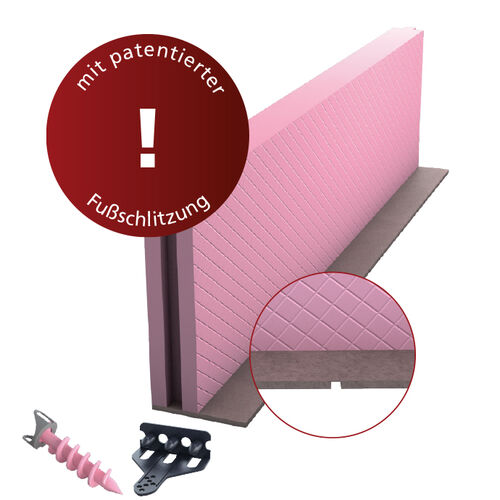

DECKENRANDSCHALUNG THERMO KOMPLETT
[ MIT FIXIERKLAMMER / -ÖSE ]
| Schenkel | XPS 35 – 160 mm / seitlich Nut + Feder |
|---|---|
| Fuß | Faserzement 4 mm |
| Elementhöhe | 160 – 300 mm |
| Elementlänge | VE 1 = 1000 mm / VE 2 = 2000 mm |
Zubehör
- Bis 60 mm Dämmstoffstärke 1 Fixierklammer / lfdm
- Ab 80 mm Dämmstoffstärke 1 Fixieröse mit Speedschraube / lfdm
Optionen
- Firmenaufdruck bis 120 mm Dämmstoffstärke
- XPS mit WLG 027 auf Anfrage
- Weitere Abmessungen auf Anfrage
* Ab min. 140 mm Dämmstärke – je nach Mauerwerksbreite und Lambdawert
| TYP | 1000 MM | ART.-NR. | 2000 MM | ART.-NR. |
|---|---|---|---|---|
| [ H / cm ] | [ m / Palette ] | [ 1000 mm ] | [ m / Palette ] | [ 2000 mm ] |
| XPS 35 | ||||
| 16 | 336 | 30092KM | 400 | 30092K |
| 18 | 336 | 30093KM | 400 | 30093K |
| 20 | 280 | 30094KM | 352 | 30094K |
| 22 | 280 | 30095KM | 344 | 30095K |
| 25 | 224 | 30097KM | 288 | 30097K |
| 30 | 192 | 30098KM | 232 | 30098K |
| XPS 50 | ||||
| 16 | 240 | 30082KM | 260 | 30082K |
| 18 | 240 | 30083KM | 272 | 30083K |
| 20 | 200 | 30084KM | 248 | 30084K |
| 22 | 200 | 30085KM | 248 | 30085K |
| 25 | 160 | 30087KM | 180 | 30087K |
| 30 | 160 | 30088KM | 152 | 30088K |
| XPS 60 | ||||
| 16 | 180 | 30060KM | 240 | 30060K |
| 18 | 180 | 30061KM | 240 | 30061K |
| 20 | 170 | 30062KM | 200 | 30062K |
| 22 | 170 | 30063KM | 212 | 30063K |
| 25 | 136 | 30064KM | 180 | 30064K |
| 30 | 104 | 30065KM | 132 | 30065K |
| XPS 80 | ||||
| 16 | 144 | 16/80KM | 176 | 16/80K |
| 18 | 144 | 18/80KM | 176 | 18/80K |
| 20 | 120 | 20/80KM | 164 | 20/80K |
| 22 | 120 | 22/80KM | 146 | 22/80K |
| 25 | 96 | 25/80KM | 132 | 25/80K |
| 30 | 72 | 30/80KM | 96 | 30/80K |
| TYP | 1000 MM | ART.-NR. | 2000 MM | ART.-NR. |
|---|---|---|---|---|
| [ H / cm ] | [ m / Palette ] | [1000 mm ] | [ m / Palette ] | [2000 mm ] |
| XPS 100 | ||||
| 16 | 120 | 16/100KM | 144 | 16/100K |
| 18 | 120 | 18/100KM | 144 | 18/100K |
| 20 | 100 | 20/100KM | 120 | 20/100K |
| 22 | 100 | 22/100KM | 120 | 22/100K |
| 25 | 80 | 25/100KM | 102 | 25/100K |
| 30 | 60 | 30/100KM | 64 | 30/100K |
| XPS 120 | ||||
| 16 | 102 | 16/120KM | 112 | 16/120K |
| 18 | 102 | 18/120KM | 112 | 18/120K |
| 20 | 84 | 20/120KM | 104 | 20/120K |
| 22 | 84 | 22/120KM | 104 | 22/120K |
| 25 | 68 | 25/120KM | 84 | 25/120K |
| 30 | 50 | 30/120KM | 56 | 30/120K |
| XPS 140 | ||||
| 16 | 104 | 16/140K | ||
| 18 | 104 | 18/140K | ||
| 20 | 78 | 20/140K | ||
| 22 | 78 | 22/140K | ||
| 25 | 78 | 25/140K | ||
| 30 | 62 | 30/140K | ||
| XPS 160 | ||||
| 16 | 104 | 16/160K | ||
| 18 | 104 | 18/160K | ||
| 20 | 78 | 20/160K | ||
| 22 | 78 | 22/160K | ||
| 25 | 78 | 25/160K | ||
| 30 | 62 | 30/160K | ||
